- Functional Description
- Specifications

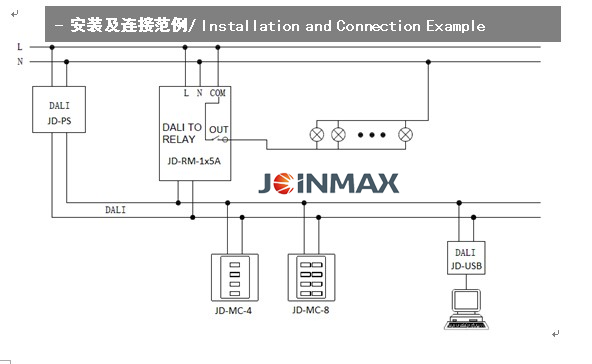

- Applications
1、One relay output controlled by DALI bus.
2、The maximum current load of output contact: 5A.
3、One DALI address assigned.
?
型號 Type | JD-RM-1x5A | ? | 執行標準// Standard |
輸入電壓范圍/Input voltage range | 100～240 VAC | ||
輸入頻率/ Input Frequency | 50/60Hz | ? | IEC 62386-101(DALI協議標準) |
功率/ Power | <2W（Max） | ? | IEC 62386-102(DALI協議標準) |
輸出繼電器觸點額定電流 / Output relay contacts rated current | 1X 5A | ? | ? |
環境溫度/ Ambient temperature | 0～50℃ | ? | ? |
儲存溫度/ Storage Temperature | -20～70℃ | ? | ? |
濕度/ Humidity | 5%～85% | ? | ? |
保護等級/ Protection class | IP20 | ? | ? |
-
