4、Lamp cap compatible with traditional lamp-socket and easy to install.
5、Quick initiation without starting problems and no stimulation for eyes.
6、Long working-life and lower maintenance cost
7、LED fluorescent light has soft light, purifies light spectrum, high color rendering index without radiation like ultraviolet rays and infrared light
8、In accordance with RoHS accreditation criteria without harmful material like mercury.
?| 技術分類? Technical Classification? | 項目規格Item | 參數 Parameter |
| 電氣性能 Electrical Properties | 工作電壓 | AC90-265V |
| 最大功耗? Max Power Consumption? | 7W? | |
| 功率因素Power Factor | ﹥0.80 | |
| 光學性能??? Optical Properties | 光源組成Lamp | SMD LED |
| 光通量Luminous Flux | 430lm-510lm | |
| 顯色指數Color Rendering Index? | CRI﹥70 | |
| 色溫Color Temperature | 2760－6600K | |
| 光效Luminous Efficacy | 61lm/W-72lm/W | |
| 光束角Beam Angle | 120° | |
| 光通維持率Luminous maintenance rate | 25550 hour (＠70)? | |

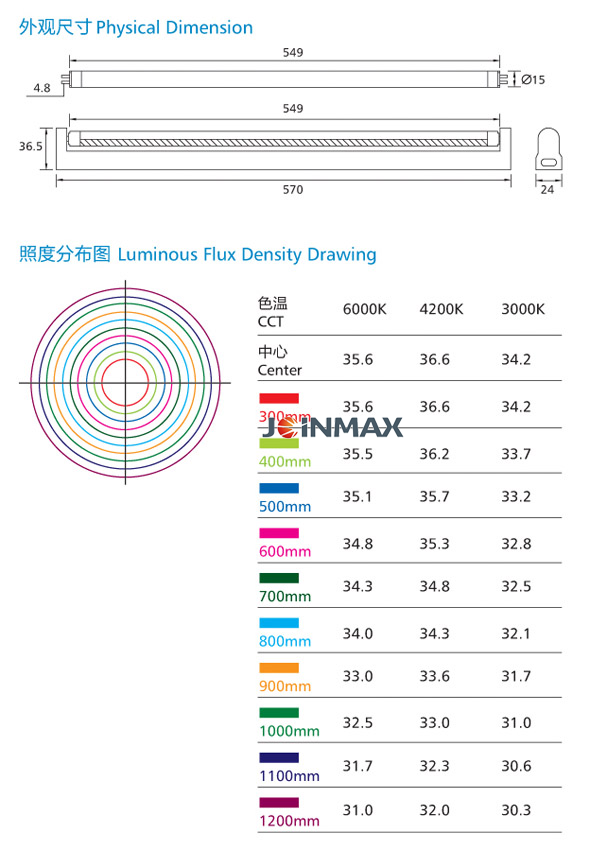

| 結構性能? Structure | 尺寸（長*寬*高） Dimension (L*W*H) | ?15*549 |
| 重量Weight | 213g（含電源及支架）??? 213 (Power supply and fitting included) | |
| 燈體材料 Material | PC/鋁/FR4??? PC/Aluminium/FR4 | |
| 工作環境溫度? Work Temperature | －20°C－55°C | |
| 工作環境濕度? Work Humidity | ≤90%? | |
| 使用環境? Work Environment | 室內干燥環境???????? Indoor Dry Environment |
? 型號對照表 Model List | |||
| 供電方式????????? Input Voltage | ?發光顏色?????????? LED Color | 光通量????????????? Luminous Flux | 產品編號??????? Model |
| AC90-265V? | 2760-3160K | 430lm | JZ23-212003-016 |
| 3920-4600K | 480lm | JZ23-212002-016 | |
| 5450-6600K | 510lm | JZ23-212001-016 |
-
