- Functional Description
- Specifications
- Applications

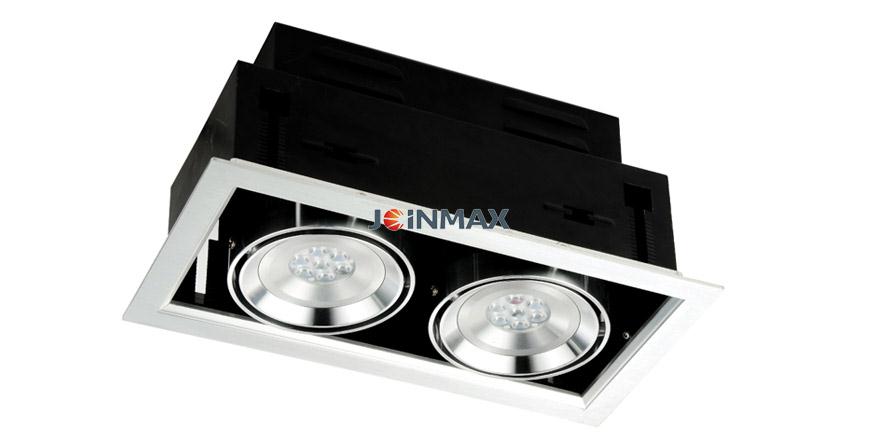

1.?????? LED spotlight employs 14-piece OSLON Square LED chip as light source with high light throughout and high photosynthetic efficiency
2.?????? Equip seven in one lens with a sparkling angle of 60 degree
3.?????? Light source color temperature at 3000K which makes people feel warm and comforted
4.?????? Light source is adjustable through X, Y two directions
5.?????? Employ the built-in concealed constant current power supply without outer power adapter, which is more safe and reliable.

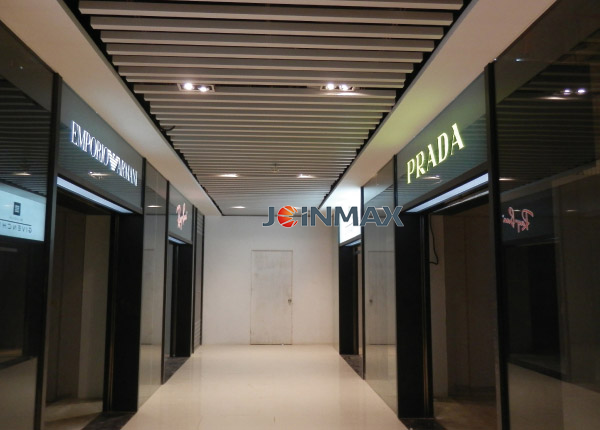

6.?????? Suitable places: hotel, bedroom, guest room, corridor, museum , bar ,villa, café and cabinet light
?技術分類 Technical?Classification | 項目規格 Item | 參數 Parameter |
電氣性能 Electrical?Properties | 供電電壓 Input?voltage | AC220V? |
最大功耗? Power?Consumption | 20W | |
光學性能 Optical?Properties | 光源組成 Lamp | 14顆大功率表貼LED 14PCS?high?power?LED?lamps |
光通量 Luminous?Flux | >1100?Im | |
顯色指數 Color?Rendering?Indes | CRI>75 | |
色溫 Color?temperatare | 3000K | |
光效值 naire?Efficacy | >55lm/w | |
發光角度 Beam?Angle? | 60° | |
光通維持率 Iuminous?Matintenance?Rade | 50000hour(@70%) | |

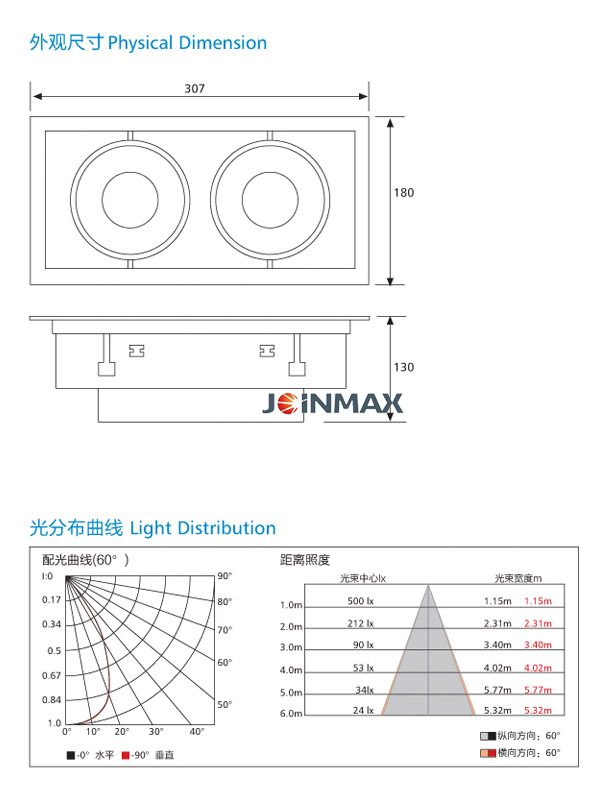

結構性能 Structurebyry | 尺寸(長x寬x高)? Dimension?(L*W*H) | 307x180x130mm |
重量 Weight | 1.2kg | |
燈體材料 Material | 鋁材 Alumimiu | |
表面顏色 Surface?Color | 黑色 Black | |
防護等級 Protection?Rating | IP40 | |
工作溫度 Work?Temperature | -20℃～50℃ | |
工作濕度 Work?Humidity | 0-90% | |
使用環境 Work?Environment | 室內干燥環境 Indoor?Dry?Environment | |
安全性能 Safety | 認證 Certificate | CE |
供電方式 Input?Voltage | 發光顏色 LED?Color | 產品編號 Model |
AC220V | 暖白3000K Warm?White | JM25-301401RN |
-
