- Functional Description
- Specifications
- Applications
1. Produce even light and employ latest structure design with 270 degree wide-angle lighting
2. Over 80% energy-saving effects compared with traditional tungsten lamp
3. Wide working electricity voltage from 90 -260 V and applicable globally
4. With three standard lighting color temperature sections: 2700K\4000K\5700K, applicable for light use in different environment
5. E26, E27 light cap, compatible with traditional light base and easy installation
6. Long working-life and lower maintenance cost
7. Accord to RoHS accreditation criteria without harmful material like mercury.
?技術分類 Technical?Classification | 項目規格 Item | 參數 Parameter |
電氣性能 Electrical?Properties | 供電電壓 Input?voltage | AC100-240?V? |
最大功耗? Power?Consumption | 8W | |
功率因數 Power?Factor | 0.7 | |
光學性能 Optical?Properties | 光源組成 Lamp | SMD?LED |
光通量 Luminous?Flux | 460Im-560?Im | |
顯色指數 Color?Rendering?Indes | CRI>75 | |
色溫 Color?temperatare | 2760-6600K | |
光效值 naire?Efficacy | 60lm/w?－70m/w | |
發光角度 Beam?Angle? | 270° | |
光通維持率 Iuminous?Matintenance?Rade | 25550hour | |

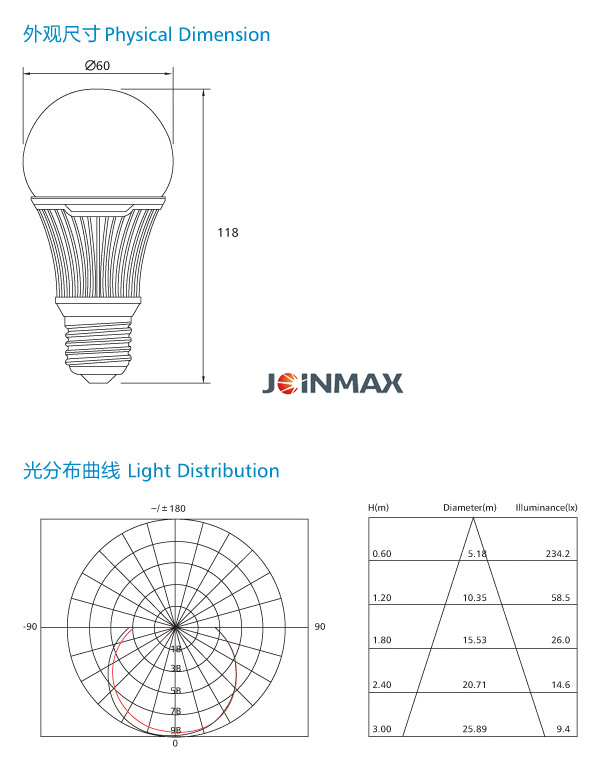

結構性能 Structure | 尺寸(長x寬x高)? Dimension?(L*W*H) | ￠60mm?X?117.82 |
重量 Weight | 93g | |
燈體材料 Material | 玻璃、鋁合金（黑色） Glass\Alumimiu?alloy?(black) | |
燈頭燈座 Life?Span | E27 | |
工作溫度 Work?Temperature | -20℃～50℃ | |
工作濕度 Work?Humidity | 90% | |
儲存環境溫度 Storgae?Temperature | -40℃～60℃ |
供電方式 Input?Voltage | 發光顏色 LED?Color | 光通量 Luminous?Flux | 產品編號 Model |
AC100-240V | 2760-3160K 3920-4600K 5450-6600K | 460lm 540lm 560lm | JZ16-203003-016 JZ16-203002-016 JZ16-203001-016 |
-
