- Functional Description
- Specifications

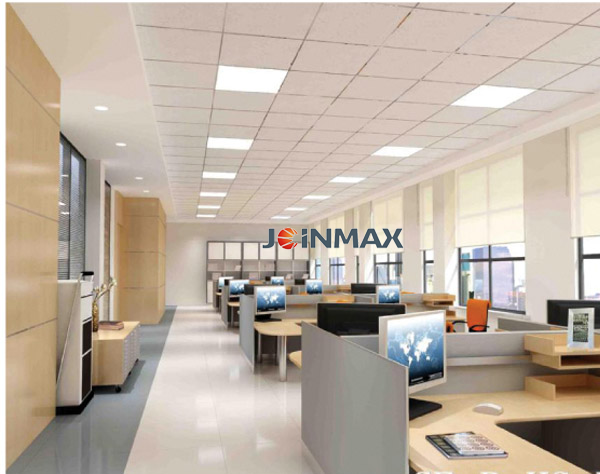

- Applications
1.?????? The lamp absorbs light from flank side and avoid direct light, the light is more even and softer.
2.?????? Employ highly-effective heat dissipation aluminum design and good heat dissipation characteristics, which is good for prolonging LED working life.
3.?????? With super-lean design of the lamp, compact ,light and anti-shaking ability
4.?????? Multiple installation approach and flexible, employ different installation method in different circumstances (embedded, ceiling type, lifted ).
?技術分類Technical?Classification? | 項目規格Item | JZ20-221601-012 | JZ20-227001-012 | JZ20-232401-012 | JZ20-243201-012 | JZ20-248001-012 | JZ20-264001-012 |
電氣參數Electrical?Properties | 供電電壓Input?voltage | DC24V | |||||
最大功耗Max.power?consumption | 20W | 28W | 34W | 40W | 50W | 65W | |
光學參數Optical?Properties | 光源組成LED?lamp??composition | 216?pcs?of?SMD5050 | 270?pcs?of?SMD5050 | 324?pcs?of?SMD5050 | 432?pcs?of?SMD5050 | 480?pcs?of?SMD5050 | 640?pcs?of?SMD5050 |
光色LED?color | 暖白/正白/冷白?Warm?white/Neutral?white/Cold?white | 暖白/正白/冷白Warm?white/Neutral?white/Cold?white | 暖白/正白/冷白Warm?white/Neutral?white/Cold?white | 暖白/正白/冷白Warm?white/Neutral?white/Cold?white | 暖白/正白/冷白Warm?white/Neutral?white/Cold?white | 暖白/正白/冷白Warm?white/Neutral?white/Cold?white | |
光通量Luminous?flux | 815LM | 1460LM | 1865LM | 3640LM | 4615LM | 5655LM | |
光束角Beam?angle | 180° | 180° | 180° | 180° | 180° | 180° | |
像素單元Display?unit | 8?pixel/m | 8?pixel/m | 8?pixel/m | 8?pixel/m | 8?pixel/m | 8?pixel/m | |
亮度等級Brightness?grade | 256級(grade) | 256級(grade) | 256級(grade) | 256級(grade) | 256級(grade) | 256級(grade) | |
光通維持率Luminous?maintenance?rate | 50000H(@70%) | 50000H(@70%) | 50000H(@70%) | 50000H(@70%) | 50000H(@70%) | 50000H(@70%) | |
光效?Luminous?efficacy | 90lm/W | ||||||
顯色指數?CRI | CRI>75 | ||||||
控制方式Control?Mode | 控制接口Control?interface | 無no | 無no | 無no | 無no | 無no | 無no |
控制系統Control?system | 無no | 無no | 無no | 無no | 無no | 無no | |

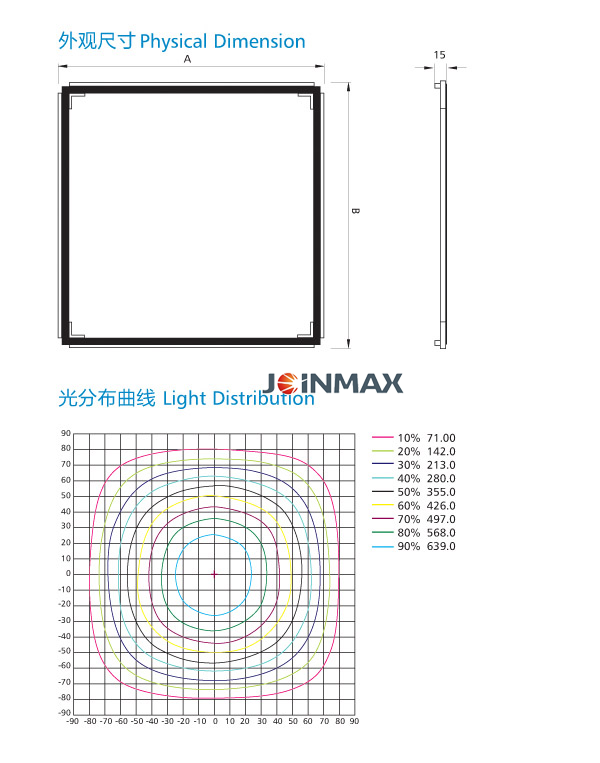

結構參數Structure?Properties | 尺寸(長x寬x高)?Dimension?(L*W*H) | 295*295*15mm | 295*595*15mm | 295*895*15mm | 595*595*15mm | 295*1195*15mm | 595*1195*15mm |
重量Weight | 1.74Kg | 3.03Kg | 4.42Kg | 5.5Kg | 6.05Kg | 11Kg | |
燈體材料Material | 擠壓鋁型材?Die-casting?aluminium? | 擠壓鋁型材Die-casting?aluminium? | 擠壓鋁型材Die-casting?aluminium? | 擠壓鋁型材Die-casting?aluminium? | 擠壓鋁型材Die-casting?aluminium? | 擠壓鋁型材Die-casting?aluminium? | |
表面顏色Surface?Color | 氧化鋁本色??Silver?grey? | 氧化鋁本色Silver?grey? | 氧化鋁本色Silver?grey? | 氧化鋁本色Silver?grey? | 氧化鋁本色Silver?grey? | 氧化鋁本色Silver?grey? | |
透鏡?Lens | 無no | 無no | 無no | 無no | 無no | 無no | |
燈具連接Connection | 無no | 無no | 無no | 無no | 無no | 無no | |
常規參數Ambient?Condition | 工作溫度Work?Temperature | -20℃～50℃ | -20℃～50℃ | -20℃～50℃ | -20℃～50℃ | -20℃～50℃ | -20℃～50℃ |
工作濕度Work?Humidity | 0～90% | 0～90% | 0～90% | 0～90% | 0～90% | 0～90% | |
安全性能Safety | 使用環境Work?environment? | 干燥?Dry | 干燥Dry | 干燥Dry | 干燥Dry | 干燥Dry | 干燥Dry |
認證Certificates? | CE，?ROHS | ||||||
防護等級Protection?grade | IP20 | ||||||
-
