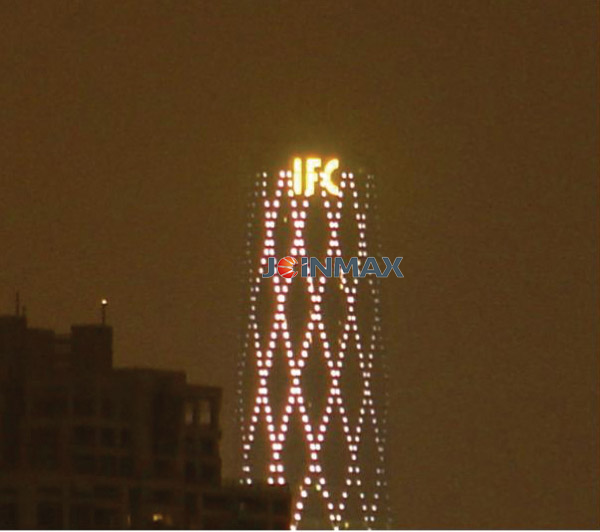

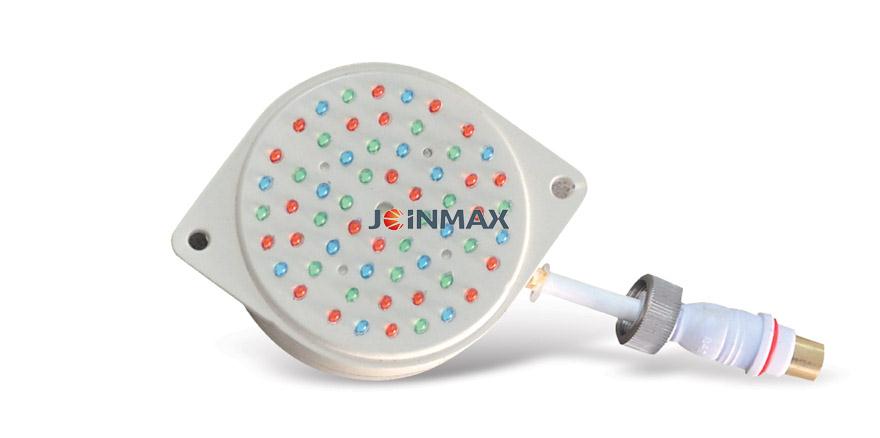

1. This series of light lamp is one high brightness LED pixel light constituted of 40 pieces of 346 packaged high-brightness LED connected with soft cable, each pixel could be controlled independently with externel power and control system, suitable for large advertising board ,light box ,large video display lighting of the advertising words. Suitable for the display at the day.

2. The pixel light employs rapid-installed structure and one-hand disassembly without tools, easy installation and maintenance, suitable for the installation on the back of the board and shown on the pixel holes, the board could be sprayed with different pictures, which in the color with pixel light, no damage for picture effect at the day.

3. The distance between the pixel connectors could be adjusted by customers and pixel lamps could also be connected, 16 pixels as most.

4. The distance between the power to the 1^st pixel lamp is 2meters in length.

5. Employ the serial bus drive and act in accordance with Joinmax`s pixel mapping video control system to form lighting picture at different form and fully demonstrate the lighting effects.

6. Employ the patented technology online【patent number：ZL 2010 2 0262526.4：ZL 2009 1 0223737.9】,write the address in the controlling end after finishing the lamp installation, more convenient installation and better reliability.

7. Full aluminum outer structure design with good heat dissipation effect and fully-glued concealed design, ?reaching IP65 protection grade ,effective for prolonging the working-life.
