- Functional Description
- Specifications
- Applications
?

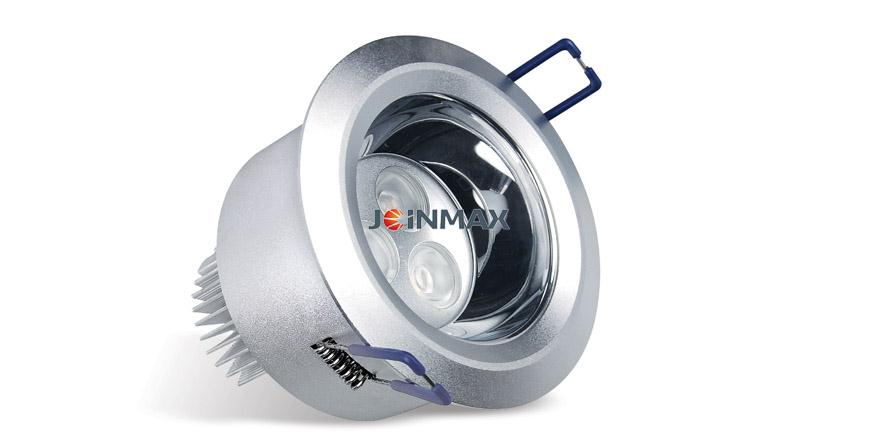

技術分類 Technical?Classification | 項目規格 Item | 參數 Parameter |
電氣性能 Electrical?Properties | 供電電壓 Input?voltage | AC100-240?V?50/60Hz |
最大功耗? Power?Consumption | 10W | |
光學性能 Optical?Properties | 光源組成 Lamp | 3W顆3顆 3W/PCS?3PCS |
光通量 Luminous?Flux | 329Im±5%??345?Im±5% | |
顯色指數 Color?Rendering?Indes | CRI>75 | |
色溫 Color?temperatare | 3000K\4000K\6000K | |
光效 Luminaire?Efficacy | 32lm/w??34lm/w | |
光束角 Beam?Angle? | 15°??35°??45°??60° | |
光通維持率 Iuminous?Matintenance?Rade | 35000hour(@70%) | |
結構性能 Structure | 尺寸(長x寬x高)? Dimension?(L*W*H) | ￠105XH123.5mm |
開孔尺寸 Cut-out | ￠89mm | |
燈體材料 Material | 車鋁 Alumimiu | |
表面顏色 Surface?Color | 銀色/白色 Silver/White | |
防護等級 Protection?Rating | IP43? | |
工作溫度 Work?Temperature | -20℃～50℃ | |
工作濕度 Work?Humidity | 0～90% | |
使用環境 Work?Environment | 室內干燥環境 Indoor?Dry??Environment | |
安全性能 Safety | 認證 Certificate | CE?RoHS |
供電方式 Input?Voltage | 發光顏色LED?Color | 產品編號 Model |
AC100-240V | 3000K/6000K | JZ03-300301-034 |
?
技術分類 Technical?Classification | 項目規格 Item | 參數 Parameter |
電氣性能 Electrical?Properties | 供電電壓 Input?voltage | AC100-240?V?50/60Hz |
最大功耗? Power?Consumption | 10W | |
光學性能 Optical?Properties | 光源組成 Lamp | 3W顆3顆 3W/PCS?3PCS |
光通量 Luminous?Flux | 329Im±5%??345?Im±5% | |
顯色指數 Color?Rendering?Indes | CRI>75 | |
色溫 Color?temperatare | 3000K\4000K\6000K | |
光效 Luminaire?Efficacy | 32lm/w??34lm/w | |
光束角 Beam?Angle? | 15°??35°??45°??60° | |
光通維持率 Iuminous?Matintenance?Rade | 35000hour(@70%) | |
結構性能 Structure | 尺寸(長x寬x高)? Dimension?(L*W*H) | ￠105XH123.5mm |
開孔尺寸 Cut-out | ￠89mm | |
燈體材料 Material | 車鋁 Alumimiu | |
表面顏色 Surface?Color | 銀色/白色 Silver/White | |
防護等級 Protection?Rating | IP43? | |
工作溫度 Work?Temperature | -20℃～50℃ | |
工作濕度 Work?Humidity | 0～90% | |
使用環境 Work?Environment | 室內干燥環境 Indoor?Dry??Environment | |
安全性能 Safety | 認證 Certificate | CE?RoHS |
供電方式 Input?Voltage | 發光顏色LED?Color | 產品編號 Model |
AC100-240V | 3000K/6000K | JZ03-300301-034 |
-
