- Functional Description
- Specifications
- Applications
1. employ the high-speed processor and integrated high-speed process circuit ，fulfill multiple fire effects with the soft characteristics of real fire

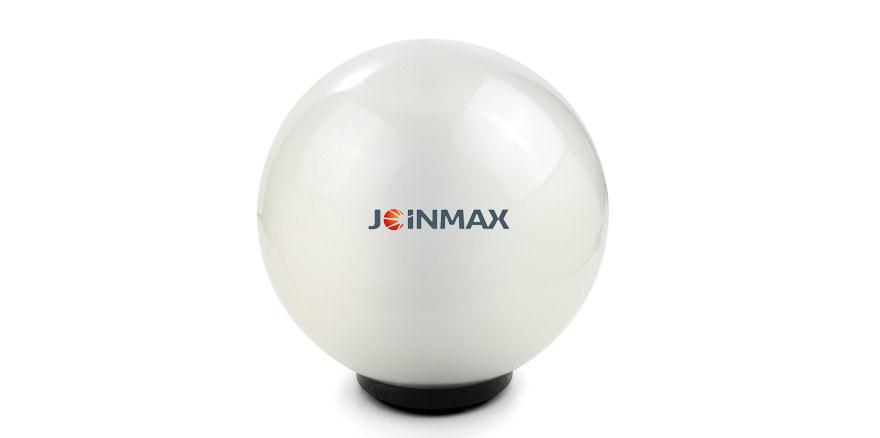

2. with polished acrylic shell and fulfill the fire effects, simple outlook, easy disassembly, maintenance and installation.

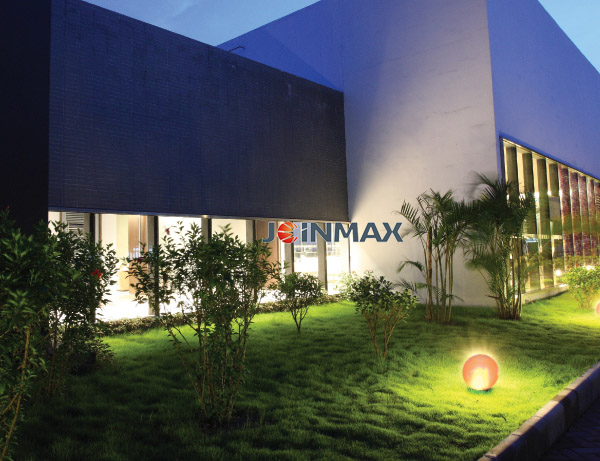

3. suitable for the scenic light, the light decoration application of courtyard, hotel, tea house and furniture
4. full-sealed structure ,achieve IP54 protection grade and suitable for outdoor use.
?技術分類Technical?Classification? | 項目規格Item | JM10-204001RGB | JM10-204002RGB |
電氣性能Electrical?Properties | 供電電壓Input?voltage | AC180-240V,?50-60Hz | AC180-240V,?50-60Hz |
最大功耗Max.power?consumption | 20?W | 49W | |
驅動方式Driving?mode | 內置恒流驅動?Inbuilt?constant?current | 內置恒流驅動Inbuilt?constant?current | |
光學性能Optical?Properties | 光源組成LED?lamp??composition | 160?pcs?3?in1?SMD?LED | 480?pcs?3?in1?SMD?LED |
光色LED?color | 全彩色?Fullcolor | 全彩色?Fullcolor | |
光束角Beam?angle | 360° | 360° | |
亮度等級Brightness?grade | 每種顏色256?級??256?grade?per?color | 每種顏色256?級???256?grade?per?color | |
光通維持率Luminous?maintenance?rate | 35000?hour（@70%） | 35000?hour（@70%） | |
結構性能Structure?Properties | 尺寸(直徑X高)?Dimension?(D*H) | Φ400mmX424mm | Φ400mmX424mm |
燈體材料Material | PC底座+PMMA面罩? | PC底座+PMMA面罩? | |
表面顏色Surface?Color | 乳白色?Milk?white | 乳白色Milk?white | |
燈具連接Connection | 3芯電源電纜?3?three-core?power?cable | 3芯電源電纜3?three-core?power?cable | |
防護等級Protection?Grade | IP54 | IP54 | |
工作溫度Work?Temperature | -20℃～50℃ | -20℃～50℃ | |
工作濕度Work?Humidity | 0～90% | 0～90% | |
使用環境Work?Environment | 干燥/潮濕?Dry/humid | 干燥/潮濕?Dry/humid |
-
