- Functional Description
- Specifications
- Applications

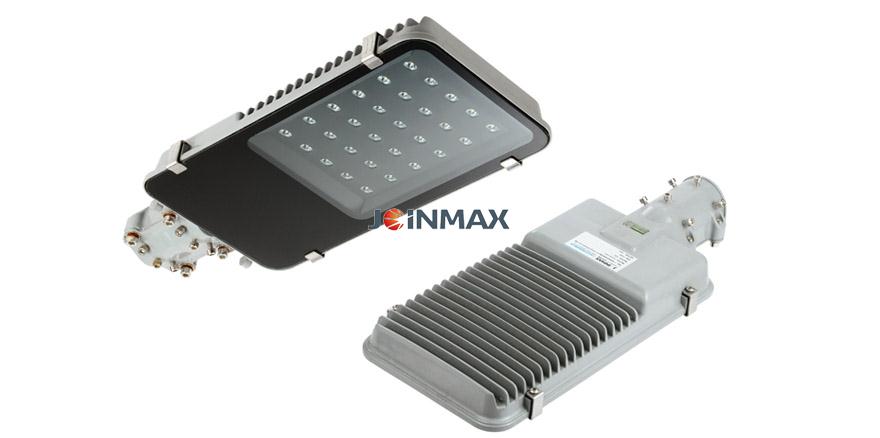

1. JM18 series low-power LED lamp employs large-power ultra-high brightness LED as light source with the characteristics of high photosynthetic efficiency, long working-life.
2. Equipped with patented twice optics lens and the batwing-shape horizontal grading, high light transmittance, high transmittance rate and good endurance.
3. Employ advanced structure design and heat analysis stem design, high-density pressed aluminum shape with large heat-radiation area and good conductivity.
4. Employ adjustable clamp installation approach and satisfy the diameter installation of lamp with a diameter of 40-60mm
5. Employ high-power outdoor LED drive power and highly-effective transitional board with low internal friction ,low self-generated heat, high electricity efficacy.

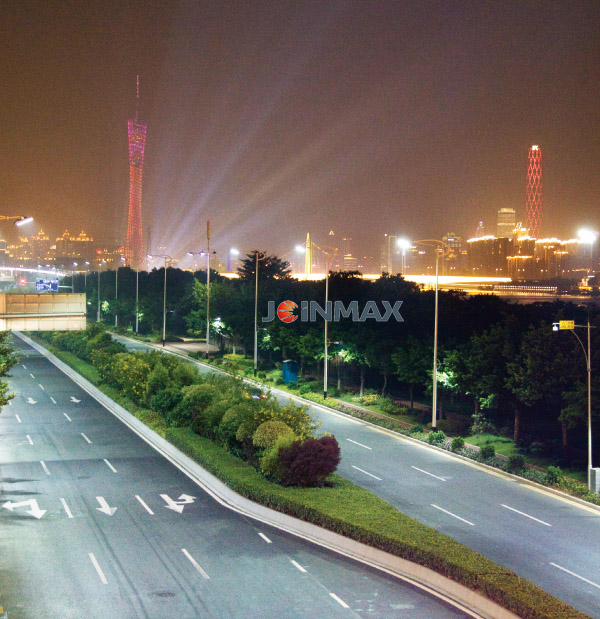

6. Low-power road lamp suitable for park, living area and school road lighting
?技術分類Technical?Classification | 項目規格Item | JM18-303001RM | JM18-301501RM |
電氣性能Electrical?Properties | 燈具功耗Power?consumption | 40W | 20W |
供電電壓Input?voltage | AC170-260V，50-60Hz | AC170-260V，50-60Hz | |
功率因數Power?factor | PF>0.90 | PF>0.90 | |
光學性能Optical?Properties | 光通量Luminous?flux | 大于Over?3400lm | 大于Over?1700lm |
光源色溫Color?temperature | 5700K | 5700K | |
顯色指數Color?rendering?index | CRI>70 | CRI>70 | |
光效Light?Efficacy | 大于Over?85?lm/W | 大于Over?85?lm/W | |
配光曲線Light?Distribution | 120°X?60°?矩型光斑120°X?60°?rectangle?light?spot | 120°X?60°?矩型光斑120°X?60°?rectangle?light?spot | |
平均照度Average?Illumination | 高度4米4?Meters?High：?>35?lux | 高度4米：?>15?lux | |
高度6米：?>15?lux | 高度6米：?>?7?lux | ||
照射范圍Lighting?Scope | 高度4米：?13.5X4.5?m2 | 高度4米：?13.5X4.5?m2 | |
高度6米：?20.5X6.5?m2 | 高度6米：?20.5X6.5?m2 | ||
控制方式?control?mode | 控制方式?control?mode | 上電長亮?electrify?light | 上電長亮?electrify?light |

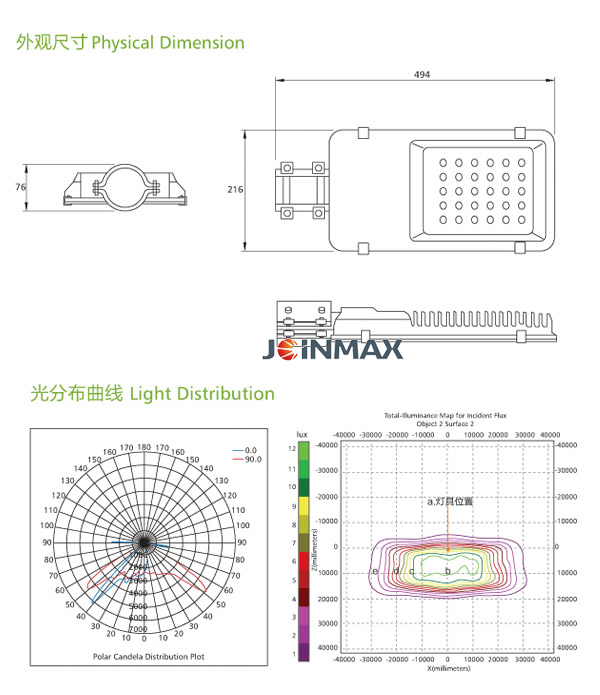

結構性能Structure | 長x寬x高Dimension(L*W*H) | 494X216X76mm | 494X216X76mm |
燈體重量Weight | 小于5.0?Kg?Less?than?5.0?Kg | 小于5.0?Kg?Less?than?5.0?Kg | |
安裝方式Installation?Method | ф60mm標準橫臂?Standard?crossarm | ф60mm標準橫臂?Standard?crossarm | |
燈體材料Material | 壓鑄鋁+鋼化玻璃Die-casting?aluminium?and?hardened?glass | 壓鑄鋁+鋼化玻璃Die-casting?aluminium?and?hardened?glass | |
表面顏色Surface?Color | 灰色?Grey | 灰色?Grey | |
工作溫度Work?Temperature | -30℃～50℃ | -30℃～50℃ | |
工作濕度Work?Humidity | 0～95% | 0～95% | |
使用壽命Life?span | 50000?hour（@70%） | 50000?hour（@70%） | |
使用環境Work?Environment | 室外道路照明Outdoor | 室外道路照明Outdoor | |
安全性能?Safety? | 防護等級Protective?Grade | IP65 | IP65 |
-
