- Functional Description
- Specifications

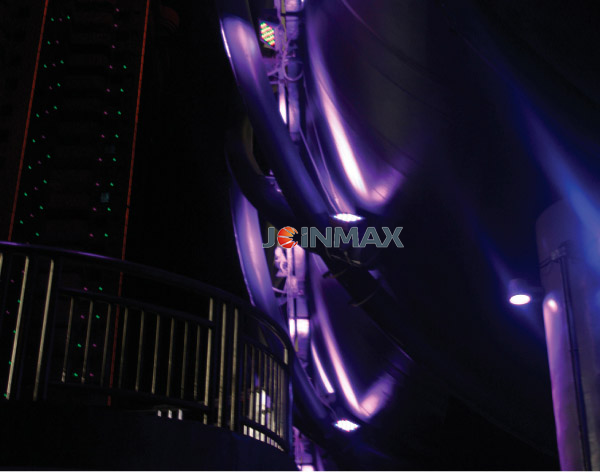

- Applications
2.The surface of the lamp is sprayed with Polyester plastic powder and good endurance
3.Unique twice optics lens with over 95% transmittance rate
4.DMX512 could control multiple dynamic demonstration of red, yellow, white, purple , orange, green and blue and controlled consistently
5. The lamps could be installed separately or united with a rotating angle of 0-180
6. The structure and safety of the electronic totally accord with EN60958 GB7000 standard requirements.
技術分類
Technical Classification
項目規格
Item
參數
Parameter
電氣性能
Electrical Properties
供電電壓
Input voltage
DC24V
?最大功耗
Max Power Consumption
4W/5W/6W12W/18W
光學性能
Optical Properties
?
?
光源組成
LED composition
4、5、6顆LED燈珠
4/5/6 LED lamp
光色
LED Color
白色/單色
White/single
光通量
Luminous flux
340lm/425lm/510lm/980lm/1330lm
光束角
Beam Angle
15°/30°/45°/60°
亮度等級
Brightness Grade
每種顏色256級
256 grade percolor
光通維持率
Luminous maintenance rate
30000 hour（@85%）
控制方式
Control Mode
控制接口
Interface
DMX512
控制系統
Control System
中鳴科技
Easyplay5.0 (Joinmax)
結構性能
Structure
尺寸(長x寬x高)
Dimension (L*W*H)
110X140X76（mm）
燈體材料
Material
壓鑄鋁成型
Die-casting aluminum
表面顏色
Surface Color
銀灰色
Optional
燈具連接
Connection
電纜連接
Cables
防護等級
Protection Rating
IP65
工作溫度
Work Temperature
-20℃～50℃
工作濕度
Work Humidity
0～90%
使用環境
Work Environment
-20°C- 40°C
供電方式 Input Voltage | 發光顏色 LED Color | 產品編號 Model |
DC24V 單色色溫 （Monochrome Color Temp） 2700-6500K | 單色1W/顆? 4顆?4W Single color 1W/pcs? 4pcs 4W | JM06-300401-017 |
單色1W/顆? 5顆?5W Single color 1W/pcs? 5pcs 5W | JM06-300501-017 | |
單色1W/顆? 6顆?6W Single color 1W/pcs? 4pcs 4W | JM06-300601-017 | |
RGB 1W/顆? 6顆?6W RGB 1W/pcs? 6pcs 6W | JZ06-300604-017 | |
RGB 2W/顆? 6顆?12W RGB 2W/pcs? 6pcs 12W | JZ06-300603-017 | |
RGB 3W/顆? 6顆?18W RGB 3W/pcs? 6pcs 18W | JZ06-300602-017 |
-
