- Functional Description
- Specifications

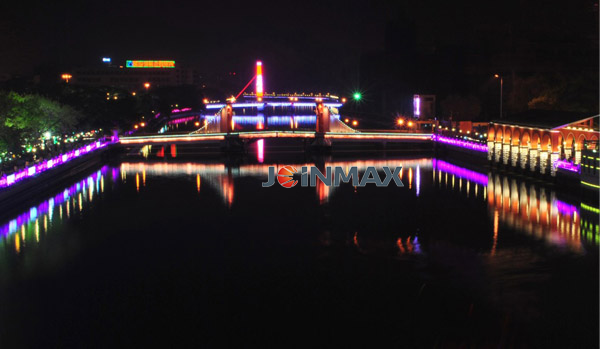

- Applications

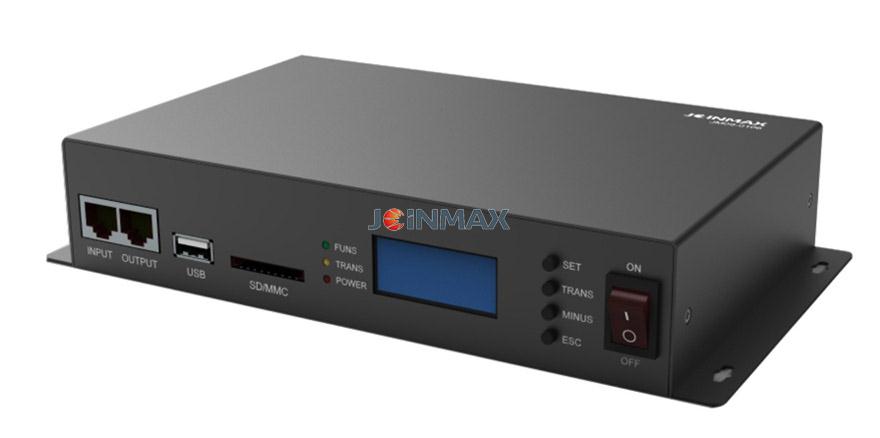

??Lighting controller (V2.0) uses high-speed 32-bit processor, communicates with the controlling computer via the network interface. It can connect to the next controller forming a larger lighting control system. Through the 8 output channels, DMX output, 4-line serial output or 2-line serial output it can achieve real-time lighting system control. You can also use the SD card or USB interface to read an external video file for playback. This controller can control lighting systems with up to 1360 display units. Master-slave structured connections can form a large scale lighting control system combining up to 100,000 display units.Features of the Lighting controller (V2.0) are as follows:
1.DMX512 Main interface（Data、A、B、GND）；
2.Single line serial interface（SD、GND），controls chip WS2811 etc.;
3.2-line serial interface（DA、SK、GND），controls chip MBI6020、MBI6021、MBI6030、MBI6023、MBI6024 etc.;
4.4-line serial interface （DAT、CLK 、LCH、OE、GND）， controls chip MBI5024、TB60726、74HC595 etc.;
5.Two (10/100M) Ethernet interfaces, assembles the master and slave control modes;
6.One SD interface, can store media files up to 2 hours long;
7.One USB interface, can connect with USB drive and store media files up to 4GB;
8.One RS485 (RS232) interface, can synchronize with other control systems by serial ports;
9.Functions are set through 4 control buttons;
10.Two line English text display through the LCD panel;
11.Suitable for AC220V.
技術分類Technical Specification | 項目規格Item | 參數Parameter |
產品標識Identification | 規格型號 Model | JM09-0332 |
電氣性能Electrical Property | 輸入電壓Input Voltage | AC220V |
最大功耗 Power Consumption | 20W | |
信號輸入 Signal Input ? | 控制輸入接口 Control Input Interface | （1）?????? SD卡接口，最大支持 32GB SD card interface, supports up to 32GB |
（2）?????? USB接口 USB interface | ||
（3）?????? 以太網接口，支持UDP數據協議 Supports data transmission through Ethernet interface and UDP network protocol | ||
（4）?????? RS485接口 RS485 interface | ||
信號輸出 Signal Output | 控制輸出接口 Control Output Interface | （1）?????? 8 × DMX512輸出，帶地址編寫和讀回 8 x DMX512 outputs, addressable and supports status feedback |
（2）?????? 或選擇8×4線串口（或8×2線串口） 8 x DMX512 output, with a choice of 4-line or 2-line serial port | ||
系統功能 System Function | 控制容量 Control Capacity | （1）?????? DMX：8 x 170像素? DMX: 8 x 170 pixels （2）?????? 串口：8 x 300像素?? Serial Port: 8 x 300 pixels |
控制功能 Control Function | （1）?????? 播放節目專用文件 Plays media files with special file （2）?????? Mapping映射功能 Mapping projection function （3）?????? DMX地址寫入和狀態讀回 DMX addressable and supports status feedback | |
設置功能 Setting Function | （1）?????? 軟件設置 Software Settings （2）?????? 按鍵+LCD屏幕設置 Button + LCD Display Setting | |

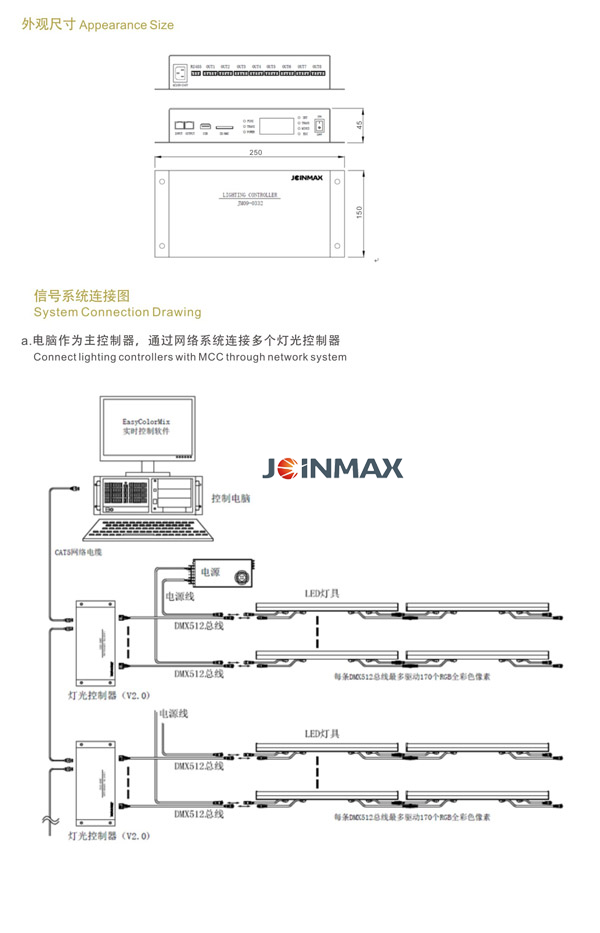

物理性能 Physical Property ? ? | 尺寸(長x寬x高) Size(L*W*H) | |
重量Weight | ||
殼體材料 Housing Material | 鍍鋅板 Zinc-coated plate | |
工作溫度 Operating Temperature | ||
工作濕度 Operating Humidity | 0~90%不凝露 0~90% | |
安全性能Safety | 使用環境 Operating Environment | 室內干燥環境 Indoor |
認證Certificate | CE |
軟件名稱 Software Name | 軟件使用環境 Operation Environment |
LED燈光智能控制軟件V1.0 Intelligent LED control software V1.0 | （1）??? 操作系統Control System Windows98/me/2000/NT/XP/Windows7 ? （2）??? 硬體基本配置Basic hardware accessories 處 理 器:賽揚2.4G或者更高。 External processor: 內??? 存:1G 或更高. Internal capacity: 顯 示 卡:32M 顯存以上. Display card: 網??? 卡：100M以上網 Internet: |
系統類別 System | 設備名稱? Equipment? Name | 參數要求 Parameter |
軟件系統 Software | 操作系統 Operation System | Windows XP or Windows 7 |
燈光控制軟件 Lighting Control Software | LED燈光智能控制軟件V1.0 Intelligent LED control software V1.0 | |
硬件系統 Hardware | 主控電腦 Main Control Computer | 以太網接口，USB接口，最少1G硬盤空間，2GB RAM，Windows系統。 Using the Ethernet interface, USB interface, requires minimum |
恒壓電源 Constant Power Supply | 對于低壓供電的燈具，提供外置恒壓電源 Provide constant power supply to low-voltage lighting fixtures | |
LED燈具 LED Lighting Fixture | 具有和數據分配器相同接口的LED燈具 Same data interface with LED light fixture |
-
